Husqvarna ST227P Parts & Part Numbers

This page lists Husqvarna catalog part numbers for six component groups on the Husqvarna ST227P, SKU 961 93 00-97: the shear bolt, drive belt, impeller belt, friction-drive rubber ring, scraper bar and composite skid shoe. Each entry shows the SKU and manufacturing-revision limits Husqvarna's catalog gives for it.

MODEL ST227P SKU 961 93 00-97 Verified 2026-10-06

Scope of this reference

Part number vs. product SKU. The numbers in the table below are component part numbers from Husqvarna's illustrated parts list. 961 93 00-97 is the product number (SKU) for the complete ST227P snow blower, not a part number.

What is covered. Only the components below, only for SKU 961 93 00-97. Entries are current catalog listings captured on 2026-10-06, not claims about the number originally fitted at manufacture. This is not a complete parts list for the machine. For engine oil, spark plug and routine maintenance specs, see the Husqvarna ST227P maintenance specs .

Verified part numbers

The "Applies to" column preserves the SKU and manufacturing-revision limits from Husqvarna's catalog. Read it before ordering: two entries are revision-specific.

Husqvarna ST227P (SKU 961 93 00-97) part numbers and applicability
Component Husqvarna part no. Husqvarna description Applies to
Shear bolt / pin 588 07 75-02 BOLT Current Husqvarna ST227P support-page IPL for SKU 961 93 00-97. The cited row has no manufacturing-revision restriction. Applicability is confined to this SKU and the catalog captured on October 6, 2026; no fitment is asserted for ST227 (non-P), another SKU, or an unlisted manufacturing revision.
Drive belt (catalog description: BELT.DRIVE.SNOW.DUAL) 584 21 61-02 DRIVE BELT (BELT.DRIVE.SNOW.DUAL) Current catalog: 96193009701, 96193009702, 96193009703 and 96193009704 (drawing HVA_PL-000014770, whose image excludes 96193009705 and 96193009706), plus 96193009705 and 96193009706 (drawing HVA_PL-000014771). The belt row has no additional restriction in either drawing. No other SKU or unlisted revision is covered.
Impeller belt (catalog description: Low crank impeller belt) 501 81 82-01 DRIVE BELT (Low crank impeller belt) Current catalog: 96193009701, 96193009702, 96193009703 and 96193009704 (drawing HVA_PL-000014770, whose image excludes 96193009705 and 96193009706), plus 96193009705 and 96193009706 (drawing HVA_PL-000014771). The belt row has no additional restriction in either drawing. No other SKU or unlisted revision is covered.
Friction-drive rubber ring (not a complete disc assembly) 581 09 11-01 RING (RING RUBBER) Within SKU 961 93 00-97: 96193009701, 96193009702, 96193009703, 96193009704 and 96193009705. The manufacturer row says For all EXCEPT 96193009706, 96191008805. The second excluded product number belongs to another SKU and is outside this dataset. This entry does not apply to 96193009706.
597 36 28-01 RING (RING FRICTION DRIVE RUBBER FRICTION DRIVE RUBBER RING) 96193009706 only within SKU 961 93 00-97. The manufacturer row says For 96193009706, 96191008805; 96191008805 belongs to another SKU and is outside this dataset. Do not use this entry for 96193009701 through 96193009705.
Scraper bar 532 40 49-32 SCRAPER (BAR.SCRAPER.27.PNT.BLACK) Current Husqvarna ST227P support-page IPL for SKU 961 93 00-97. The cited row has no manufacturing-revision restriction. Applicability is confined to this SKU and the catalog captured on October 6, 2026; no fitment is asserted for ST227 (non-P), another SKU, or an unlisted manufacturing revision.
Composite skid shoe 583 83 88-01 SHOE (PLATE.SKID.SHOE.COMPOSITE) Current Husqvarna ST227P support-page IPL for SKU 961 93 00-97. The cited row has no manufacturing-revision restriction. Applicability is confined to this SKU and the catalog captured on October 6, 2026; no fitment is asserted for ST227 (non-P), another SKU, or an unlisted manufacturing revision.

Descriptions are shown as Husqvarna writes them. Part numbers link to Husqvarna's spare-part pages.

What each component does

Shear bolt / pin 588 07 75-02

The current ST227P IPL lists this bolt at ref. 6 in the auger housing and impeller drawing and ref. 1 in accessories. This entry identifies the current catalog component number. It does not claim a bolt dimension, an accessory-kit number, or a supersession relationship to an earlier bolt.

Official source
Evidence for 588 07 75-02

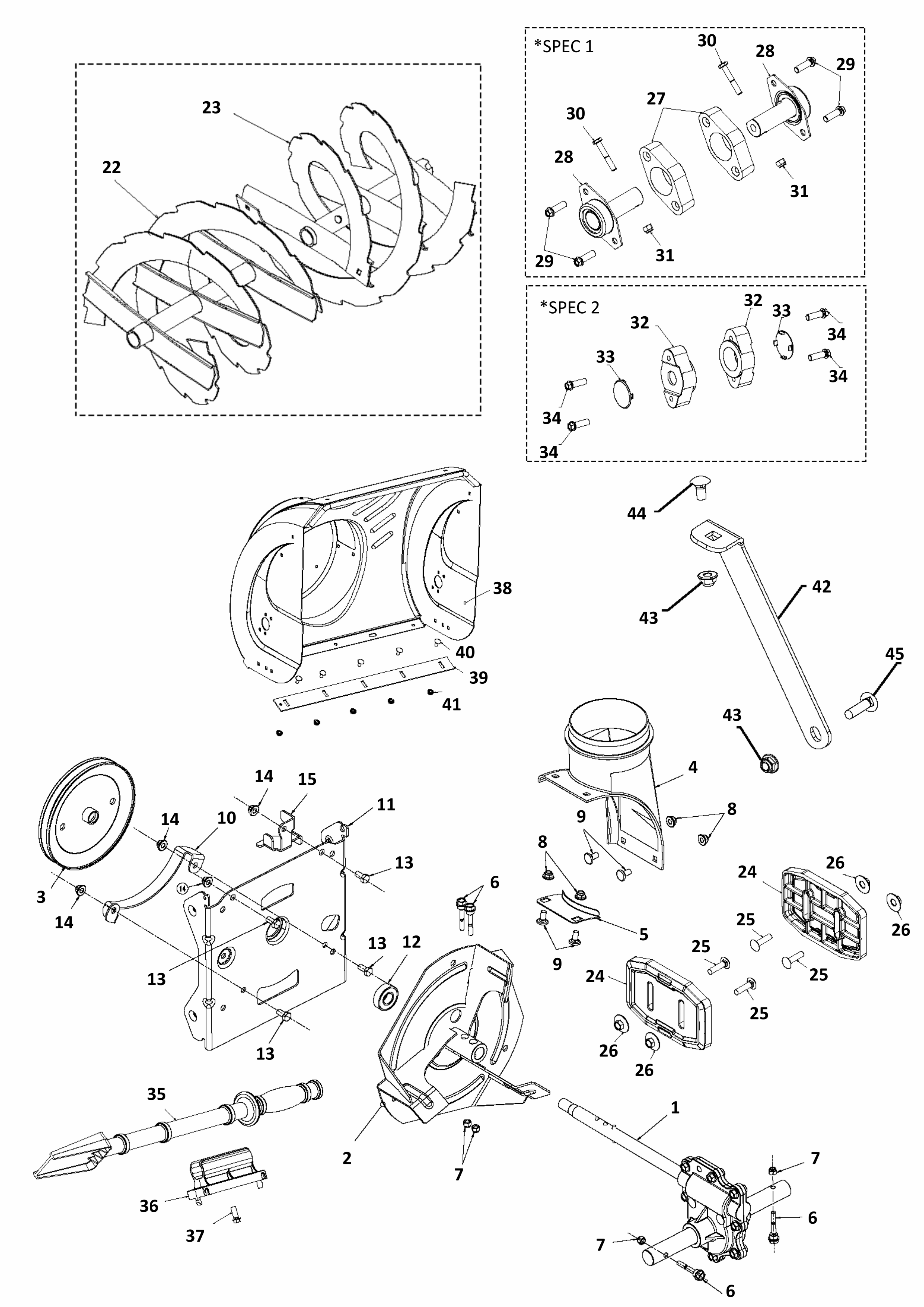

AUGER HOUSING AND IMPELLER, drawing HVA_PL-000014769, ref. 6: 588077502, BOLT; applicability comment: none. Diagram: https://media.husqvarnagroup.com/image/VI-258455.png ACCESSORIES, drawing HVA_PL-000014768, ref. 1: 588077502, BOLT; applicability comment: none. Diagram: https://p3.aprimocdn.net/husqvarna/f5f31dbc-a205-45ee-a62a-ade80133a4c9/TB-688674_HighResPng.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/588077502/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Drive belt (catalog description: BELT.DRIVE.SNOW.DUAL) 584 21 61-02

Husqvarna labels this component DRIVE BELT and describes it as BELT.DRIVE.SNOW.DUAL. Both catalog belts share the name DRIVE BELT. This entry preserves the manufacturer description and part number; it does not independently identify this belt as the operator manual's traction belt.

Official source
Evidence for 584 21 61-02

CHASSIS, ENGINE AND PULLEYS, drawing HVA_PL-000014770, ref. 18: 584216102, DRIVE BELT; applicability comment: none. Diagram: https://p3.aprimocdn.net/husqvarna/92493761-aeae-48e2-af2e-ade80133bd89/OC-270497_HighResPng.png CHASSIS, ENGINE AND PULLEYS, drawing HVA_PL-000014771, ref. 5: 584216102, DRIVE BELT; applicability comment: none. Diagram: https://p3.aprimocdn.net/husqvarna/671879b7-950d-49b3-811b-ade80133c6f5/LL-545640_HighResPng.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/584216102/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Impeller belt (catalog description: Low crank impeller belt) 501 81 82-01

Husqvarna labels this component DRIVE BELT and describes it as Low crank impeller belt. This is the manufacturer's impeller-belt description. No independent claim equates it to a numbered auger-belt procedure in the operator manual.

Official source
Evidence for 501 81 82-01

CHASSIS, ENGINE AND PULLEYS, drawing HVA_PL-000014770, ref. 19: 501818201, DRIVE BELT; applicability comment: none. Diagram: https://p3.aprimocdn.net/husqvarna/92493761-aeae-48e2-af2e-ade80133bd89/OC-270497_HighResPng.png CHASSIS, ENGINE AND PULLEYS, drawing HVA_PL-000014771, ref. 7: 501818201, DRIVE BELT; applicability comment: none. Diagram: https://p3.aprimocdn.net/husqvarna/671879b7-950d-49b3-811b-ade80133c6f5/LL-545640_HighResPng.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/501818201/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Friction-drive rubber ring (not a complete disc assembly) 581 09 11-01 / 597 36 28-01

The DRIVE drawing shows the rubber ring at ref. 22 separately from the plate at ref. 21 and hub at ref. 19. These entries identify the ring only. The two ring numbers have different manufacturing-revision applicability; no interchangeability or supersession between them is asserted.

Official source
Evidence for 581 09 11-01

DRIVE, drawing HVA_PL-000014774, ref. 22: 581091101, RING; applicability comment: For all EXCEPT 96193009706, 96191008805. Diagram: https://p3.aprimocdn.net/husqvarna/8cf9b655-2963-493d-8d77-ade801349a7c/RM-364492_HighResPng.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/581091101/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Official source
Evidence for 597 36 28-01

DRIVE, drawing HVA_PL-000014774, ref. 22: 597362801, RING; applicability comment: For 96193009706, 96191008805. Diagram: https://p3.aprimocdn.net/husqvarna/8cf9b655-2963-493d-8d77-ade801349a7c/RM-364492_HighResPng.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/597362801/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Scraper bar 532 40 49-32

Husqvarna lists SCRAPER at ref. 39 in the auger housing and impeller drawing and describes the part as BAR.SCRAPER.27.PNT.BLACK. The entry identifies the scraper component only; it makes no claim that mounting hardware is included.

Official source
Evidence for 532 40 49-32

AUGER HOUSING AND IMPELLER, drawing HVA_PL-000014769, ref. 39: 532404932, SCRAPER; applicability comment: none. Diagram: https://media.husqvarnagroup.com/image/VI-258455.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/532404932/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Composite skid shoe 583 83 88-01

Husqvarna lists SHOE at ref. 24 in the auger housing and impeller drawing and describes the part as PLATE.SKID.SHOE.COMPOSITE. This is the component number; package quantity and included mounting hardware have not been verified.

Official source
Evidence for 583 83 88-01

AUGER HOUSING AND IMPELLER, drawing HVA_PL-000014769, ref. 24: 583838801, SHOE; applicability comment: none. Diagram: https://media.husqvarnagroup.com/image/VI-258455.png Part description cross-check: https://www.husqvarna.com/us/spare-parts/583838801/ . Verified 2026-10-06. This is a current catalog listing, not a claim about the number originally fitted at manufacture.

Sources and manufacturer documentation

Husqvarna ST227P support page: spare parts (illustrated parts list) Open ↗ Husqvarna's parts data for SKU 961 93 00-97, including its per-part manufacturing-ID notes and drawing references. This is the primary source for every part number and applicability note on this page. Husqvarna spare-part page: 588 07 75-02 Open ↗ Shear bolt / pin. Husqvarna description: BOLT. Husqvarna spare-part page: 584 21 61-02 Open ↗ Drive belt (catalog description: BELT.DRIVE.SNOW.DUAL). Husqvarna description: DRIVE BELT (BELT.DRIVE.SNOW.DUAL). Husqvarna spare-part page: 501 81 82-01 Open ↗ Impeller belt (catalog description: Low crank impeller belt). Husqvarna description: DRIVE BELT (Low crank impeller belt). Husqvarna spare-part page: 581 09 11-01 Open ↗ Friction-drive rubber ring (not a complete disc assembly). Husqvarna description: RING (RING RUBBER). Husqvarna spare-part page: 597 36 28-01 Open ↗ Friction-drive rubber ring (not a complete disc assembly). Husqvarna description: RING (RING FRICTION DRIVE RUBBER FRICTION DRIVE RUBBER RING). Husqvarna spare-part page: 532 40 49-32 Open ↗ Scraper bar. Husqvarna description: SCRAPER (BAR.SCRAPER.27.PNT.BLACK). Husqvarna spare-part page: 583 83 88-01 Open ↗ Composite skid shoe. Husqvarna description: SHOE (PLATE.SKID.SHOE.COMPOSITE).

Related ST227P maintenance data

Engine oil, spark plug and routine maintenance specs for the ST227P are on the Husqvarna ST227P maintenance specs page.

Compiled by TuneSpecs from Husqvarna documentation. Part numbers and applicability last verified 2026-10-06. Husqvarna may supersede part numbers; check the part number on Husqvarna's spare-part page before ordering.
